Click2Pay

This guide is providing guidance on who to implement click2Pay on merchant payment page.

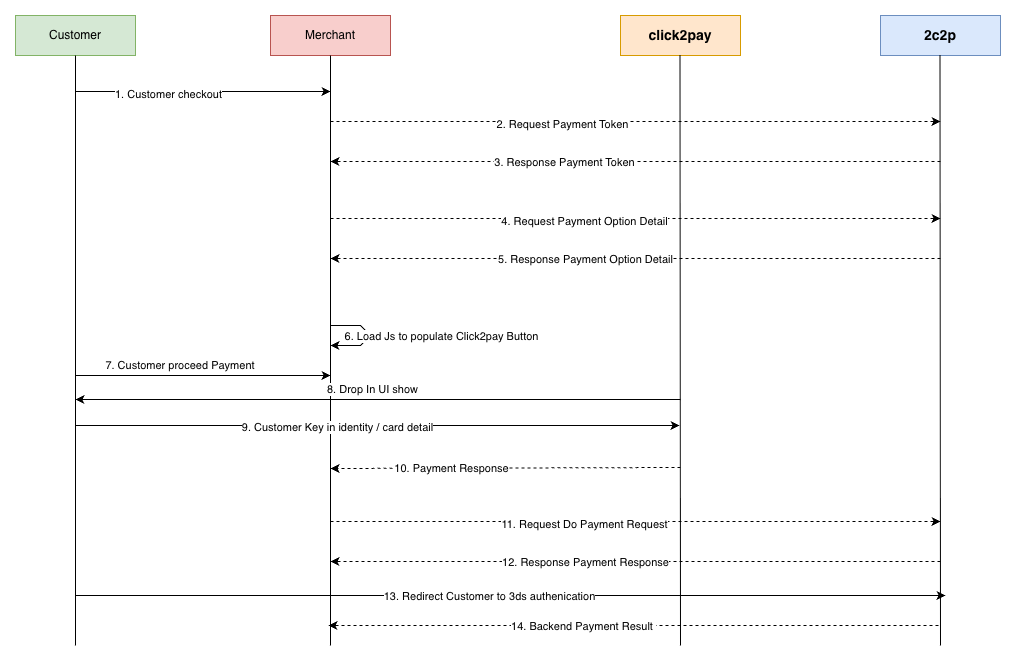

Customer landing on merchant checkout page
Merchant to send payment token API
Merchant receive payment token response
Merchant send Payment Option Detail API
Merchant receive Payment Option Detail response with the CaptureContext value that is required for front-end JS
Populate click2pay event() & button
Customer proceed Payment with click2Pay
click2pay drop-in UI to display
Customer key in identity & card detail on click2pay drop-in UI and submit payment
Click2pay service will return token
Merchant send do payment API with token
Merchant receive do payment response
Redirect Customer to perform 3ds authentication
Merchant receive payment result upon payment completed

Pre requisite

On the merchant payment page, it is required

add Cybersource js lib
add <div> used to populate click2pay button

<html>
  <body><div id="payment-container"></div> <!--to show click to pay button-->
	</body>
  <script src="https://testup.cybersource.com/uc/v1/assets/0.28.2/SecureAcceptance.js"></script>
  <!--Cybersource js
	prod url : https://up.cybersource.com/uc/v1/assets/0.28.3/SecureAcceptance.js
 -->
</html>

Payment Token Request

Request Payment Token API with CLICK2PAY payment channel code

{
    "merchantID": "JT01",
    "invoiceNo": "1523953661",
    "description": "item 1",
    "amount": 1000.00,
  	"currencyCode": "SGD",
		"paymentChannel": ["CLICK2PAY"]

}

Request `CaptureContext` via Payment Option Detail API

To specific request for click2pay, required to send

categoryCode : DPAY
groupCode : CWALLET
in HTTP header required to add merchant website domain.
- This is required for click2pay service to whitelist when merchant website is populate the drop-in UI
- The website domain provided MUST be same as the provided website when onboard with 2c2p
- X-Merchant-Domain : <merchant-domain>

url --location 'https://sandbox-pgw.2c2p.com/payment/4.3/PaymentOptionDetails' \
--header 'X-Merchant-Domain: https://merhcantABC.com' \
--header 'Content-Type: application/json' \
--data '{"paymentToken": "kSAops9Zwhos8hSTSeLTUTndJJj51v8PCyu4uHoefMlPOgG39WOcgWgVfPAcQ9NRQHQBWvXl9q6OCvZBWzDoOBVQ24dKUIZ5slcL1Oo5TpQ=", "categoryCode" : "DPAY", "groupCode": "CWALLET"}'

Receive CaptureContext data from Channels[].payment.token

{
  "totalChannel": 1,
  "name": null,
  "categoryCode": "DPAY",
  "groupCode": "CWALLET",
  "iconUrl": "https://d27uu9vmlo4gwh.cloudfront.net/images/v4/images/icon/wallet.png",
  "channels": [
    {
      "sequenceNo": 7,
      "name": "Click2Pay",
      "bankShortName": null,
      "currencyCodes": null,
      "iconUrl": "https://d27uu9vmlo4gwh.cloudfront.net/images/v4/images/icon/click2pay.png",
      "logoUrl": "https://d27uu9vmlo4gwh.cloudfront.net/images/v4/images/logo/click2pay.png",
      "payment": {
        "code": {
          "channelCode": "CLICK2PAY"
        },
        "input": {
          "name": "O",
          "email": "O",
          "customerNote": "I"
        },
        "validation": {
          "name": "^(?!\\s*$)[-a-zA-Z' ''.']{1,}$",
          "email": "^(([^<>()\\[\\]\\\\.,;:\\s@\"]+(\\.[^<>()\\[\\]\\\\.,;:\\s@\"]+)*)|(\".+\"))@((\\[[0-9]{1,3}\\.[0-9]{1,3}\\.[0-9]{1,3}\\.[0-9]{1,3}])|(([a-zA-Z\\-0-9]+\\.)+[a-zA-Z]{2,}))$",
          "customerNote": "(.*?)"
        },
        "info": {
          "customData": [],
          "provider": {
            "id": "",
            "channels": [
              "MA",
              "VI",
              "UP",
              "MD"
            ],
            "merchantDetails": {
              "id": "458458000000000",
              "name": "SCCS",
              "countryCode": "MY"
            },
            "transactionDetails": {
              "amount": 10,
              "currencyCode": "MYR",
              "invoiceNo": "270226105906",
              "description": "V4 Test"
            },
            "termsConsent": false
          },
          "termsConsent": false,
          "token": "eyJraWQiOiJ3ZiIsImFsZyI6IlJTMjU2In0.eyJmbHgiOnsicGF0aCI6Ii9mbGV4L3YyL3Rva2VucyIsImRhdGEiOiJ4VU45YmY3bEh2QU0yRElWZWlCZFZHMTN6UVJoWlUwVnlQNVVRQlA4cUN4cHc1UElGNFF4UmZFY1hmWHM1V1JvdDFON1BrWnJlaTlJb3hQbVM5RHZxdnRBV1Roenl1LVV3dlJMeGh0bU5ZMUx0SmZ0S2ZfbTl1bEtOblVNa1NjRk0temVwd2o2RC00Ni1RWm11RldONUVaOWlydFJ2Y1d3NzQwS0hhRW92THBvS2RDMXhzZ1N5UWZUNG04ZVVpc2VJLWs3UTdCR1hqTjFycDdZQS1taUdMOUxqSDZsZzg0OGY1UFoiLCJvcmlnaW4iOiJodHRwczovL2ZsZXguY3liZXJzb3VyY2UuY29tIiwidHJhbnNpZW50VG9rZW5PcGVyYXRpb25zIjpbeyJzdWIiOiIyYzJwX2MycF9nbG9iYWwwMDEiLCJhdWQiOiIyYzJwX3BvcnRmb2xpbyIsImtpZCI6IjIwMjQxMjE4LTJjMnAtcHVibGljIiwidHlwZSI6IlNUT1JFIn1dLCJ0b2tlbnNVcmwiOiJodHRwczovL2ZsZXguY3liZXJzb3VyY2UuY29tL2ZsZXgvdjIvdG9rZW5zIiwiandrIjp7Imt0eSI6IlJTQSIsImUiOiJBUUFCIiwidXNlIjoiZW5jIiwibiI6ImwyV0xfYmRQdzJMekJ3RjYxZjgwZHJTdHp4SnJENUhtWkNHN0dRTFQ4VG5zTXN0bldhMmRVYTBPQWM2M0MxNUJlU0VPLWY1YTNuY0FsOUhMX3QyWGVNUFdmX2ZLSDhRMWdwRHB1OVM1SmNQMC1FNzI4WGJoT2FLaEVMa25UZUVjdVFiNWhhdUppbS1wMV9Sd2RVNlQxX09rSHJ5NjFPMmw2c1RYSUJIZVp6LWJWRTJacmtzUjdWNjhJaG5uaHViRnNkdEVEc182d1UtcTdHUjBlbXNUUDZldFNzMU5oYkFwUVpVdTE2SGJfaU4zX09idl9ObF93cmNmZVVfLUEwZGVoaFY1WHdST2pxODNjNHNkbkVGY1RiMGpwYUZzdFZYUzhtc1plZHc4V0dnMk5IMjRxSDV2ZUZDYXIwUW1KVC16T1dGZ0dqdS03RTB2dXl4VDBZdTZ4USIsImtpZCI6IjAzVzQxTG4wZWJJaE45NnZuRUxWNWQ3OGt1dWhFYmJmIn19LCJjdHgiOlt7ImRhdGEiOnsiYWxsb3dlZFBheW1lbnRUeXBlcyI6WyJDTElDS1RPUEFZIiwiUEFORU5UUlkiXSwib3JkZXJJbmZvcm1hdGlvbiI6eyJhbW91bnREZXRhaWxzIjp7InRvdGFsQW1vdW50IjoiMTAuMDAiLCJjdXJyZW5jeSI6Ik1ZUiJ9fSwiY2FwdHVyZU1hbmRhdGUiOnsic2hvd0NvbmZpcm1hdGlvblN0ZXAiOnRydWUsImJpbGxpbmdUeXBlIjoiTk9ORSIsInJlcXVlc3RFbWFpbCI6dHJ1ZSwicmVxdWVzdFBob25lIjpmYWxzZSwicmVxdWVzdFNoaXBwaW5nIjpmYWxzZSwic2hpcFRvQ291bnRyaWVzIjpbIk1ZIl0sInNob3dBY2NlcHRlZE5ldHdvcmtJY29ucyI6ZmFsc2V9LCJwYXltZW50Q29uZmlndXJhdGlvbnMiOnsiU1JDVklTQSI6eyJvcmlnaW4iOiJodHRwczovL2Fzc2V0cy5zZWN1cmUuY2hlY2tvdXQudmlzYS5jb20iLCJwYXRoIjoiL2NoZWNrb3V0LXdpZGdldC9yZXNvdXJjZXMvanMvc3JjLWktYWRhcHRlci92aXNhU2RrLmpzP3YyIiwicGFuRW5jcnlwdGlvbktleSI6eyJraWQiOiJaSFBRQlowVko4VTJKQlZRTjVaVzE0d2tPaXNOektkT1AtQjMxQXZLS0FYNENMeldFIiwiZSI6IkFRQUIiLCJuIjoia1B1andWSmpldklfb2Vad1pvQTJXanQ5NERGY012UkNhYjhpUmlFR3JHZktXdE5Dd1FZa3lseXVSb0I2MTVjWW0yQlZidm9LSDhZeXYwYUMzZHdhaDZVbU9kSnN6bUwwcFZfY2J4X3RYeldnWWczc1lOc3Awc0J4VUZjUTFBNkRWYnlPeHhKYm1ud2xIR0U1Zmt1ekpyLXFxdWwzUnN3c0NHLXZQcmhfLS0yX1JTaXBhOWxWcjlndmZJNEFiRkFCTFRxS2V0bzByV1BiSUJLZGhjR1E3Sk1QeHpxODIzOUtQVVpmU3lOdWVBY2RMLXlIQURpM0wyVlN6ZEY3dFM3c2kzdWVfSUZvWERwYmdnc0Z4dkV0NzlVbEJET0JzYWdjX21zOV9ac1lsSmFLQ1Q4Wmp3aGFrTW9fLVpkYzk3bXVkVmoxanoyX0w1bDRsX3ppYkY1cml3In0sInBhcmFtZXRlcnMiOnsic3JjSW5pdGlhdG9ySWQiOiJQVVBWVk1BTFNKUUdET0lKRDFQSTIxYTktdlpUbHFWV3FyNm13TkYzWTEyTllPR3lrIiwic3JjaURwYUlkIjoiNDdkOGEzYTYtZjExYS00MGJkLTkzMGQtYWMwYmEyMWQ1M2E4Iiwic3JjaVRyYW5zYWN0aW9uSWQiOiI4Y2MzYjc0Ny03ODhlLTRkY2ItYjUxMi03ZDcyMDIxNDcwNWIiLCJkcGFUcmFuc2FjdGlvbk9wdGlvbnMiOnsiZHBhTG9jYWxlIjoiZW4iLCJwYXlsb2FkVHlwZUluZGljYXRvciI6IkZVTEwiLCJyZXZpZXdBY3Rpb24iOiJjb250aW51ZSIsImRwYUFjY2VwdGVkQmlsbGluZ0NvdW50cmllcyI6W10sImRwYUFjY2VwdGVkU2hpcHBpbmdDb3VudHJpZXMiOlsiTVkiXSwiZHBhQmlsbGluZ1ByZWZlcmVuY2UiOiJOT05FIiwiZHBhU2hpcHBpbmdQcmVmZXJlbmNlIjoiTk9ORSIsImNvbnN1bWVyTmFtZVJlcXVlc3RlZCI6dHJ1ZSwiY29uc3VtZXJFbWFpbEFkZHJlc3NSZXF1ZXN0ZWQiOnRydWUsImNvbnN1bWVyUGhvbmVOdW1iZXJSZXF1ZXN0ZWQiOmZhbHNlLCJtZXJjaGFudENvdW50cnlDb2RlIjoiTVkiLCJjdXN0b21JbnB1dERhdGEiOnsiY2hlY2tvdXRPcmNoZXN0cmF0b3IiOiJtZXJjaGFudCJ9LCJ0cmFuc2FjdGlvbkFtb3VudCI6eyJ0cmFuc2FjdGlvbkFtb3VudCI6IjEwLjAwIiwidHJhbnNhY3Rpb25DdXJyZW5jeUNvZGUiOiJNWVIifSwicGF5bWVudE9wdGlvbnMiOnsiZHBhRHluYW1pY0RhdGFUdGxNaW51dGVzIjoxNSwiZHBhUGFuUmVxdWVzdGVkIjpmYWxzZSwiZHluYW1pY0RhdGFUeXBlIjoiQ0FSRF9BUFBMSUNBVElPTl9DUllQVE9HUkFNX0xPTkdfRk9STSJ9fX19LCJTUkNNQVNURVJDQVJEIjp7Im9yaWdpbiI6Imh0dHBzOi8vc3JjLm1hc3RlcmNhcmQuY29tIiwicGF0aCI6Ii9zZGsvc3Jjc2RrLm1hc3RlcmNhcmQuanMiLCJwYW5FbmNyeXB0aW9uS2V5Ijp7Imt0eSI6IlJTQSIsImUiOiJBUUFCIiwidXNlIjoiZW5jIiwia2lkIjoiMjAyMzAyMjcxMzU2MDMtcHJvZC1mcGFuLWVuY3J5cHRpb24tc3JjLW1hc3RlcmNhcmQtaW50Iiwia2V5X29wcyI6WyJlbmNyeXB0Iiwid3JhcEtleSJdLCJhbGciOiJSU0EtT0FFUC0yNTYiLCJuIjoienh3SHF1elJKRnlfRkhXS2xaeDNxZkhNSElLS1dJaklSZnJDOWV0dVZPN2RDOHYyUlgxbG1wRmdpQTZKeHRiU20tZGFpbTc5U2ZrNnJQc05mUHVKT3VlbzlRYlgxUWlWZVJ3NmR1VU5OeTdtZ0w4bHpuaHRBNWhoOF9WZngxYXduR3E2TFUxX3lfeXd2QXhkcm0zS0djTVp2VUFKYS0wVUFoTFBJTF8tT1c1TjVlSVFQVGczbklyaVlNY0RZMXBENTRGQVRJYnFQQU5NVUVybVN6VVJtRktPdTZUblJnVTFueDg4czBRR0p5eU00SC1qUnh3N0g4OWV0UjlUeERwUjI0OE5WTmZURXczWXpIUmE1WnZkcTNpVHVGWk9YcmxkRGFsNGhIYzY2WkZTclc1STc2MHllQ3gxMVRTdUlxaDhnS2VIN2ZEdmRlNG9ibmdqNkx4MmJ3In0sInBhcmFtZXRlcnMiOnsic3JjaVRyYW5zYWN0aW9uSWQiOiI4Y2MzYjc0Ny03ODhlLTRkY2ItYjUxMi03ZDcyMDIxNDcwNWIiLCJzcmNpRHBhSWQiOiI0N2Q4YTNhNi1mMTFhLTQwYmQtOTMwZC1hYzBiYTIxZDUzYTgiLCJzcmNJbml0aWF0b3JJZCI6IjVmMDg4ODA1LTU4Y2ItNDBlYi05MTdiLWFiOWIxM2ZhYjIxYSIsImRwYVRyYW5zYWN0aW9uT3B0aW9ucyI6eyJ0cmFuc2FjdGlvblR5cGUiOiJQVVJDSEFTRSIsImRwYUxvY2FsZSI6ImVuIiwiZHBhQWNjZXB0ZWRTaGlwcGluZ0NvdW50cmllcyI6WyJNWSJdLCJjb25zdW1lckVtYWlsQWRkcmVzc1JlcXVlc3RlZCI6dHJ1ZSwiY29uc3VtZXJQaG9uZU51bWJlclJlcXVlc3RlZCI6ZmFsc2UsInRyYW5zYWN0aW9uQW1vdW50Ijp7InRyYW5zYWN0aW9uQW1vdW50IjoiMTAuMDAiLCJ0cmFuc2FjdGlvbkN1cnJlbmN5Q29kZSI6Ik1ZUiJ9LCJkcGFBY2NlcHRlZEJpbGxpbmdDb3VudHJpZXMiOltdLCJkcGFCaWxsaW5nUHJlZmVyZW5jZSI6Ik5PTkUiLCJkcGFTaGlwcGluZ1ByZWZlcmVuY2UiOiJOT05FIiwiY29uc3VtZXJOYW1lUmVxdWVzdGVkIjp0cnVlLCJwYXlsb2FkVHlwZUluZGljYXRvciI6IkZVTEwiLCJwYXltZW50T3B0aW9ucyI6eyJkeW5hbWljRGF0YVR5cGUiOiJDQVJEX0FQUExJQ0FUSU9OX0NSWVBUT0dSQU1fU0hPUlRfRk9STSJ9fX19fSwidGFyZ2V0T3JpZ2lucyI6WyJodHRwczovL3Bndy11aS4yYzJwLmNvbSJdLCJpZnJhbWVzIjp7Im1jZSI6Ii9tY2UvbWNlLmh0bWwiLCJidXR0b25zIjoiL2J1dHRvbmxpc3QvYnV0dG9ubGlzdC5odG1sIiwic3JjIjoiL3NlY3VyZS1yZW1vdGUtY29tbWVyY2Uvc3JjLmh0bWwiLCJjdHAiOiIvY3RwL2N0cC5odG1sIiwiZ29vZ2xlcGF5IjoiL2dvb2dsZXBheS9nb29nbGVwYXkuaHRtbCIsImFwcGxlcGF5IjoiL2FwcGxlcGF5L2FwcGxlcGF5Lmh0bWwiLCJwYXplIjoiL3BhemUvcGF6ZS5odG1sIiwiY2hlY2siOiIvY2hlY2svY2hlY2suaHRtbCIsImdhIjoiL2dhL2dhLmh0bWwiLCJvcmMiOiIvb3JjL29yYy5odG1sIiwidG0iOiIvdG0vdG0uaHRtbCIsImFwbSI6Ii9hcG0vYXBtLmh0bWwifSwiY2xpZW50VmVyc2lvbiI6IjAuMjgiLCJjb3VudHJ5IjoiTVkiLCJsb2NhbGUiOiJlbiIsImFsbG93ZWRDYXJkTmV0d29ya3MiOlsiTUFTVEVSQ0FSRCIsIlZJU0EiXSwiYW5hbHl0aWNzIjp7Imdvb2dsZSI6eyJzY3JpcHQiOiJodHRwczovL3d3dy5nb29nbGV0YWdtYW5hZ2VyLmNvbS9ndGFnL2pzIiwiaWQiOiJHLVBUMlJZOFYxNkQifSwiZXZlbnRHcm91cElkIjoiMWNOWktDRGtaTFYxSDNjdVFXMEpRektqS0xGNXE0ZEN3VElIN1ZFQXpfLXZsbFphTnd5LTVtNWxUUzJ3Xy1RIn0sImNyIjoib0RwN1ZhXzFOUWtWa3ZIS08wRFduY3Vsd2gwcHlnWURJRGtOaVgxZnRBbWRwcHFLNGtYYVpiQk05N2UxSkFabVktXzE2WkpPMlA3cW9BMkx5cnFVWklDZVJmakIzWl9oSVdONXVMMV9KX2RwNDZsUE93UnBWVUc1amxBblIyYUtQUHF1ZlM3d3Y3R1RJeEUiLCJzZXJ2aWNlT3JpZ2luIjoiaHR0cHM6Ly91cC5jeWJlcnNvdXJjZS5jb20iLCJjbGllbnRMaWJyYXJ5IjoiaHR0cHM6Ly91cC5jeWJlcnNvdXJjZS5jb20vdWMvdjEvYXNzZXRzLzAuMjguMy9TZWN1cmVBY2NlcHRhbmNlLmpzIiwibG9nZ2luZ1BhdGgiOiIvdWMvdjEvbG9nLWV2ZW50cyIsImFzc2V0c1BhdGgiOiIvdWMvdjEvYXNzZXRzLzAuMjguMyIsImNsaWVudExpYnJhcnlJbnRlZ3JpdHkiOiJzaGEyNTYtM3Z4M2dXamwreEphOUpaYS9lS0E5VTFFRTVMWE5qMGxHN3JXUW12cS9uUVx1MDAzZCJ9LCJ0eXBlIjoiZ2RhLTAuMTAuMCJ9XSwiaXNzIjoiRmxleCBBUEkiLCJleHAiOjE3NzIxNjU3MTYsImlhdCI6MTc3MjE2NDgxNiwianRpIjoiY0NVVjRVVnBxSzZMY3NVTCJ9.mMdzEKmwvdHVDEtAKfUubGax4981z0m1CHKDDtGzhrfUWh8Y3nJ1uLL50ny1KaA6JFx8mqtf6yFnSdH3XZxbbOFzaob5beXqtSQnHuBjWOJ75kgHVjtxxg7pAsdZASnW5bBfcmavkiPZas1K7V5HJvh9XEivM5kYr_6q3iMZKMk7M6QD-ts2gcTItfoYX-29wUiUCZABwqkPQj3aQLSVmnDP1vU_j7nPaW9xlUAyW01_yOMqcyWHpHS4ZhQ19tG3JoCbsleasFj2drzm9Tf5XYvGxPRDMmkPXRSeMYxX-ieVd4vEXBwoLN_Zk07BwABO3D_ETZr1-2dAiWdIJolW8g",
          "srcUrl": "https://testup.cybersource.com/uc/v1/assets/0.28.3/SecureAcceptance.js"
        },
        "isDown": false,
        "CheckEligibleOption": false,
        "ippProviderCode": null,
        "registrationStatus": null,
        "partnerMerchantRefID": null,
        "displayProcessingAmount": false,
        "supportsTokenization": false,
        "clickToPayEnabled": false,
        "requiredTxnStatusInquiry": false,
        "SupportPaySimulate": false
      }
    }
  ],
  "validation": null,
  "configuration": {
    "payment": {
      "tokenize": false,
      "tokenizeOnly": false,
      "cardTokenOnly": false,
      "immediatePayment": true,
      "fx": {}
    },
    "notification": {
      "facebook": false,
      "whatsApp": false,
      "line": false
    }
  },
  "respCode": "0000",
  "respDesc": "Success"
}

Populate click2pay event() & button

To populate click2pay event and button, captureContextToken data is required

 <script>
function loadClick2PayButton(captureContextToken){
    var captureContextToken =
          const click2PayWindow = window;
    if (!click2PayWindow.Accept) {
        console.error("Accept() not found. UC script not loaded.");
        return;
      }

    click2PayWindow.Accept(captureContextToken)
        .then(function (accept) {
        return accept.unifiedPayments();
      })
        .then(function (up) {
        return up.show(showArgs);
      })
        .then(function (result) {

        // call do payment api with return token
        submitPayment(result);
      })
        .catch(function (err) {
        console.error("UC error", err);
      });
}

//control the click2pay button
const showArgs = {
	  containers: {
		paymentSelection: "#payment-container"
	  },
	  locale: "en_US"
};
</script>

Submit Payment via Do Payment API
